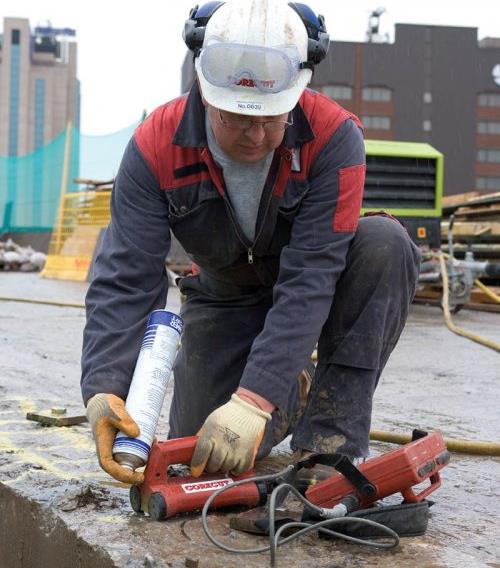

Ferroscan Concrete Surveying
Corecut in conjunction with the very latest technology from Hilti are at the forefront of structural surveying and the analysis of the steel reinforcement in reinforced concrete structures.
PS1000 X-Scan
The PS1000 X-Scan offers real-time concrete structure examination, providing accurate on-site images. It features
three scan modes-Quickscan detection, Quickscan recording, and Imagescan-and presents 2D and 3D views for
easy mapping and multilayer identification. Ideal for locating rebar, conduits, cables, voids, and wood up to 300
mm deep, it helps avoid concealed objects during drilling and sawing. It supports rebar extension and inspects
floors, decks, slabs, balconies, tunnels, bridges, and buildings.

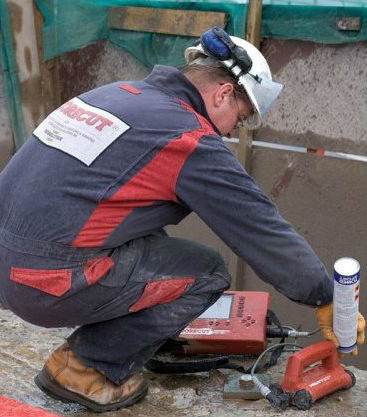

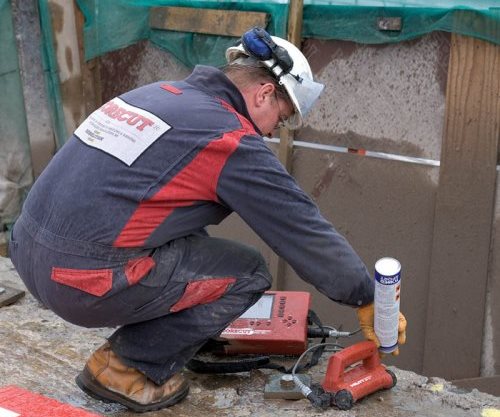

PS300 Ferroscan
The PS300 Ferroscan provides precise rebar layout visualisation with top and sectional views on its screen. Its
smart algorithm ensures accurate rebar depth measurement, and the wide sensor area allows quick scanning over
large regions. It records scan data for thorough documentation and analysis. Ideal for verifying first-layer rebar, it
assesses concrete cover over large areas, supports structural repair, and is used for building inspections and
quality control. It generates detailed 2D and 3D structural assessment reports.
Key Features
-
VERIFICATION OF REINFORCEMENT
-
CHECKING OF COVER
-
AVOIDING REBAR HITS
-
SCANS LARGE AREAS QUICKLY
-
PROVIDES A VIEWABLE IMAGE OF THE REINFORCEMENT
-
EXTENDED PC EVALUATION AND DOCUMENT POSSIBILITIES
-
REINFORCEMENT SHOWN AS CLEARLY VISIBLE GREY-SCALE IMAGE
-
SINGLE SCANS UP TO 30M
-
DUST AND WATER SPLASH PROOF
The verification of reinforcement is vital in today’s modern building techniques and Reinforcement Surveys can aid in a variety of situations.
-
BUILDING ACCEPTANCE INSPECTIONS
-
COVER CHECKING OVER A LARGE AREA DURING RENOVATION
-
QUALITY CONTROL
-
VERIFICATION OF LENGTH
-
POST-INSTALLED REINFORCEMENT
The specially designed PC software permits further processing, evaluation, exact analysis and documentation of all the data recorded.
-
PRINTS OUT SCANNED IMAGES AND REPORTS INCLUDING DATA FROM SEVERAL POINTS IN THE IMAGES
-
PROVIDES A COMPLEX ALGORITHM WHICH ENSURES GOOD DIFFERENTIATION BETWEEN CLOSELY SPACED REINFORCED BARS
-
THE SYSTEM HAS A 32BIT PC COMPATIBILITY WITH WINDOWS 95, 98, AND NT
-
ON THE SPOT PRINTOUTS
Technical Data
-
MAX. DETECTION DEPTH FOR OBJECT LOCALIZATION - 400 MM 1
-
LOCALISATION ACCURACY - ±10 MM 2
-
MINIMUM DISTANCE BETWEEN TWO NEIGHBOURING OBJECTS - 40 MM
-
IP PROTECTION CLASS - IP 54 (IEC 529)
-
OPERATING TIME WITH LI-ION BATTERY (MONITOR) - 10 H
-
OPERATING TIME WITH LI-ION BATTERY (SCANNER) - 4 H
-
OPERATING TEMPERATURE RANGE - -10 - 50 °C
-
DATA MEMORY (SCANNER) - APPROX. 200 SCANS (SD) APPROX. 10 SCANS (INTERNAL FLASH MEMORY)
-
WEIGHT (SCANNER) (INCL. BATTERY) - 2.5 KG
-
WEIGHT (MONITOR) (INCL. BATTERY) - 1.8 KG
-
DIMENSIONS (SCANNER) - 318 X 190 X 143 MM
-
DISPLAY LENGTH (MONITOR) - 230 MM
-
DISPLAY DIMENSIONS (SCANNER) - 115 X 86 MM
-
DISPLAY TYPE (MONITOR) - LCD 10.1"
-
DIMENSIONS (MONITOR) - 298 X 206 X 43 MM
-
DISPLAY LENGTH (SCANNER) - 115 MM
-
SCANNING RANGE - MIN. - 320 MM
-
EM SENSOR SENSITIVITY - 250 MA (45 - 65 HZ, DOUBLE WIRE, SPACING 5 MM, DEPTH 80 MM) 3
-
DISPLAY HEIGHT (MONITOR) - 150 MM
-
DISPLAY RESOLUTION (MONITOR) - 1920 X 1200 PIXELS
-
DISPLAY DIMENSIONS (MONITOR) - 230 X 150 MM
-
DISPLAY RESOLUTION (SCANNER) - 640 X 480 PIXELS
-
AUTOMATIC POWER-OFF (SCANNER) - CONFIGURABLE
-
AUTOMATIC POWER-OFF (MONITOR) - CONFIGURABLE
-
LOW BATTERY INDICATION - YES
-
STORAGE TEMPERATURE RANGE - -25 - 63 °C
-
MEMORY TYPE (MONITOR) - SSD
-
MAX. RELATIVE HUMIDITY (OPERATION) - 90%
-
SCANNING RANGE - MAX. - 10000MM
-
DISPLAY HEIGHT (SCANNER) - 86MM
-
DISPLAY TYPE (SCANNER) - TFT 5.7"
-
AUTOMATIC SWITCH-OFF - CONFIGURABLE
-
MAX. SCANNING SPEED - 0.5M/S
